1. Configuration server

In distrubuted system, every service has particular config like yml, json,… Configuration server used for externalizing configuration và centralizing configuration.

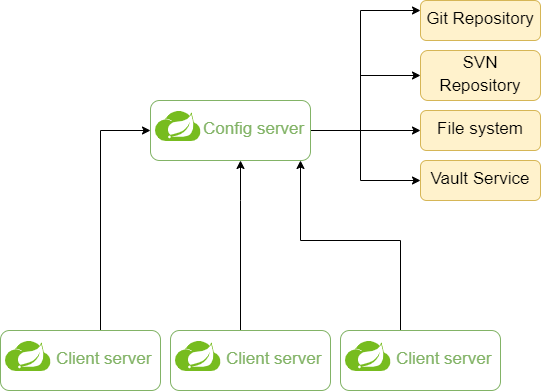

Config server

2. Spring Cloud Config Server

2.1. Dependency

<dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
</dependencyManagement>

<dependencies>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-config-server</artifactId>
  </dependency>
</dependencies>

2.2. Enabling config server

Add @EnableConfigServer annotation in entrypoint class

@SpringBootApplication
@EnableConfigServer
public class ConfigServer {
  public static void main(String[] args) {
    SpringApplication.run(ConfigServer.class, args);
  }
}

Configure port to start Config server in application.yml file

server:
  port: 8888

2.3. Configure repository to store config files

In application.yml file

server.port: 8888
# fetch config from git
spring:
  profiles.active: git

# git repo
  cloud.config.server:
    git:
      uri: https://github.com/john/configs.git
#     username: username    # if private repo
#     password: password    # if private repo
#     search-paths: foo,bar* # search file in folders /foo or /bar*
      timeout: 10

2.4. How to use Config server?

Serving at http://localhost:8888 with rule api:

/{application}/{profile}[/{label}]
/{application}-{profile}.yml
/{label}/{application}-{profile}.yml
/{application}-{profile}.properties
/{label}/{application}-{profile}.properties

Where:

  • {application}: service name configurated in Config client (e.g bootstrap.yml file) with spring.application.name property
  • {profile}: profile name used in Config client (e.g bootstrap.yml file) with spring.profiles.active property. default if it is empty
  • {lable} (optinal): git label. default is master

3. Spring Cloud Config Client

3.1. Dependency

<dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>${spring-cloud.version}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
</dependencyManagement>

<dependencies>
  <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-config</artifactId>
  </dependency>
</dependencies>

3.2. Connect to Config Server

In bootstrap.yml file

spring:
  application:
    name: client-service
  profiles:
    active: default
  cloud:
    config:
      uri: http://localhost:8888

With this config, service will get to http://localhost:8888/client-service/default then Config Server will look at https://github.com/john/configs.git with file name client-service.yml.
